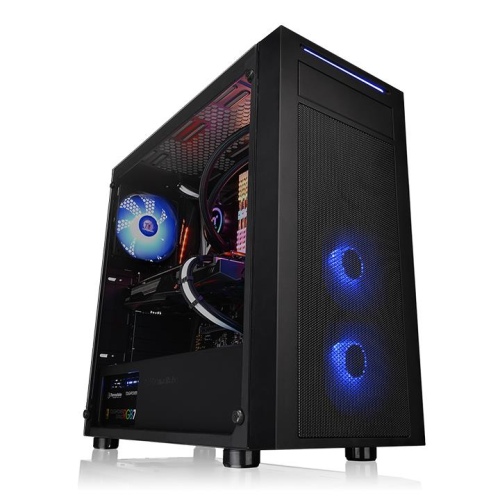

The Versa J22 is designed for the PC builder who wants a classic look and 5.25” bay support, but wants amazing cooling performance
and tempered glass as well. The special RGB edition of the J22 comes with 3 built-in 120mm
12V RGB fans that are dual-mode controllable either via the I/O port RGB button or the synchronization
with enthusiasts’ favorite RGB capable motherboard brands, including Asus, Gigabyte, MSI,
ASRock, and Biostar.
The J22 is a standard mid-tower with ATX support, but it also boasts a suite of premium features
that make it the most outstanding standard case you’ve seen
*The image is for reference only.
* Two 120mm intake 12V RGB fans and one 120mm exhaust 12V RGB fan are included.
3 Built-in 120mm 12V RGB Fans
Versa J22 TG RGB is preinstalled with three 120mm 12V RGB fans that can be controlled using a
simple interface built into the I/O panel that cycles through three different lighting modes
and a range of different color options.
Thanks to the built-in RGB switch board, Versa J22 TG RGB is able to deliver the ultimate RGB lighting customization through the I/O port RGB button or the synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock RGB LED, and BIOSTAR Vivid DJ-enabled motherboards.
Equipped with a full-length PSU cover with a ventilated design to improve airflow and hide those unsightly cables.
Tempered Glass Window
The tempered glass window on the side of the J22 is built to be more durable and scratch resistant than older acrylic panels.
Tool-Free Installation
The included 2.5”/3.2” tool-less drive caddies can be installed in a number of locations around
the chassis, including under the PSU shroud, behind the motherboard tray and on top of the
PSU cover.
3.5” or 2.5” HDD Drive Compatible
The Versa J22 has outstanding expandability with support for a tower CPU cooler with maximum height 160mm, a dual expansion slot VGA of up to 310mm in length, and a power supply with length of up to 170mm. The front panel also includes one 5.25” bay for optical drive support
*The image is for reference only.
* Two 120mm intake 12V RGB fans and one 120mm exhaust 12V RGB fan are included.
Optimized for excellent cooling capability with one 120mm exhaust fan preinstalled. The case is able to house up to dual 140mm or three 120mm front fans, up to 2x 140mm fans on top, and a radiator size up to 280mm at the same time to allow users to build a complete high-end system.
*The image is for reference only.
* Two 120mm intake 12V RGB fans and one 120mm exhaust 12V RGB fan are included.
The perforated front provides ample airflow to fans mounted behind the front panel, while keeping dust and air particles out of the system.
Handy I/O Ports
One 3.0 and two 2.0 USB ports on top-front panel to grant direct access when needed. As well as a standard 5.25” bay for optical drives.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Fan Supporting List
|
|||||||||||||||||||||||||
|
||||||||||||||||||||
| P/N | CA-1L5-00M1WN-01 |
|---|---|
| Saria | Versa |
| Model | Versa J22 TG RGB |
| RODZAJ OBUDOWY | Middle tower |
| Wymiar (Wys. x Szer. x Gł.) | 447 x 205 x 455 mm (17.6 x 8.1 x 17.91 inch) |
| WAGA NETTO | 7.1 kg / 15.65 lb |
| PANEL BOCZNY | 4mm Tempered Glass x1 |
| Kolor | Exterior & Interior : Black |
| MATERIAŁ | SPCC |
| SYSTEM CHŁODZENIA | Rear (exhaust) : 120 x 120 x 25 mm RGB fan (1000rpm, 16dBA) Front (intake) : 120 x 120 x 25 mm RGB Fan (1000rpm, 16dBA) x2 |
| Zatoki dyskowe -Dostępne -Ukryte |
1x 5.25”; 2 x 2.5“ 2x 3.5’’ or 2.5’’(HDD Tray); 2 x 2.5”(HDD Bracket) |
| GNIAZDA ROZSZERZEŃ | 7 |
| PŁYTY GŁÓWNE | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| PORTY WE/WY | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| ZASILACZ | Standard PS2 PSU (optional) |
| WSPARCIE WENTYLATORÓW | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| WIELKOŚĆ CHŁODNICY | Front: 1 x 240mm, 1 x 280mm Top: 1 x 240mm Rear: 1 x 120mm |
| PRZEŚWIT | CPU cooler height limitation: 160mm VGA length limitation: 310mm PSU length limitation: 170mm |
