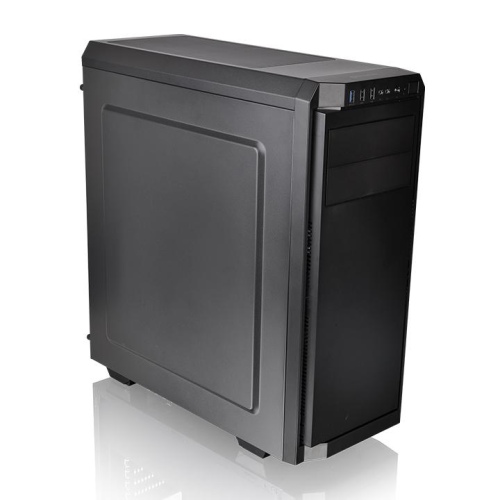

The V100 mid-tower chassis features one preinstalled 120mm fan and supports up to a standard ATX motherboard. The V100 supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.
Overall with a bold and sleek design, the V100 has a clear appearance that conveys a sense of style. The little trims on the front of the V100 make this budget-friendly chassis the number one choice in its category.
Equipped with a full-length PSU cover with vent hole design to hide those unsightly cables from view and give your build a sleek and tidy look, and what’s more, a better airflow.
The V100 supports motherboards up to standard ATX, a tower CPU cooler with maximum height 160mm, and a expansion slot VGA of up to 400mm in length without HDD rack. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
*The image is for reference only. One 120mm fan is included.
The V100’s unparalleled cooling ability offers various mounting points to support any type of cooling you can dream of including DIY/AIO liquid-cooling systems and air-cooling units. Apart from the built-in 120mm rear fan, users are allowed to install up to 360mm DIY liquid cooling radiator or two 140mm fans at the front to optimize system ventilation.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
| P/N | CA-1K7-00M1NN-00 |
|---|---|
| Saria | Seria V |
| RODZAJ OBUDOWY | Middle tower |
| Wymiar (Wys. x Szer. x Gł.) | 410 x 190 x 470 mm (16.1 x 7.5 x 18.5 inch) |
| WAGA NETTO | 5.0 kg / 11.02 lb |
| PANEL BOCZNY | No window |
| Kolor | Exterior & Interior : Black |
| MATERIAŁ | SPCC |
| SYSTEM CHŁODZENIA | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Zatoki dyskowe -Dostępne -Ukryte |
5.25” x 2 ; 2.5” x 2 2 x 2.5“ or 3.5”(HDD Cage) |
| GNIAZDA ROZSZERZEŃ | 7 |
| PŁYTY GŁÓWNE | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| PORTY WE/WY | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| ZASILACZ | Standard PS2 PSU (optional) |
| WSPARCIE WENTYLATORÓW | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| WIELKOŚĆ CHŁODNICY | Front: 1 x 360mm, 1 x 280mm Rear: 1 x 120mm |
| PRZEŚWIT | CPU cooler height limitation: 160mm VGA length limitation: 400mm PSU length limitation: 170mm |
User Manual
- Nazwa pliku
- Opis
- Rozmiar
- Version
- Release Date
-
Manual
- Multi-language
- 12.9 MB
- 2018-04-27
