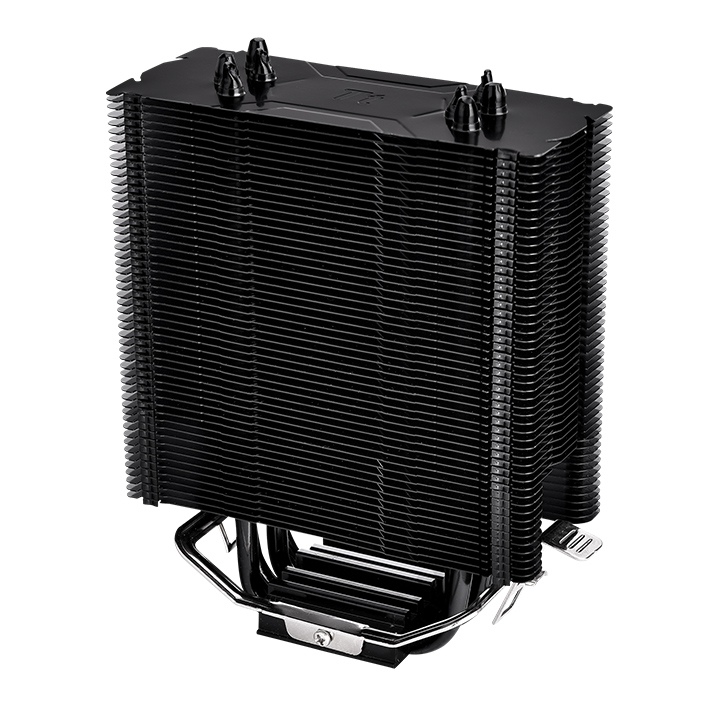

UX200 SE ARGB Lighting CPU Cooler
16.8 Million TRUE RGB COLOR
Features 15 high lumen addressable LEDs with 16.8 million colors, UX200 SE gives you a vivid RGB lighting experience. Enjoy reliable cooling performance and magnificent visual effects with UX200 SE.
![](pub/media/wysiwyg/key3/img/UX200SEARGB/pic1.jpg)
HIGH VOLUME AIRFLOW DESIGN
The fan blades are built to generate a large volume of air passing through the aluminum heatsink and U-shaped copper heat pipes at any angle for steady air flow.
![](pub/media/wysiwyg/key3/img/UX200SEARGB/pic10.jpg)
![](pub/media/wysiwyg/key3/img/UX200SEARGB/pic11.jpg)
RELIABLE HYDRAULIC BEARING
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
![](pub/media/wysiwyg/key3/img/UX200SEARGB/pic12.gif)
EASY TO INSTALL
The mounting kit offers hassle-free installation. UX200 SE includes an all-in-one back-plate which is compatible with all the latest Intel and AMD CPU sockets.
Compatible with Intel LGA 1700/1200/1156/1155/1151/1150
AMD: AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
![](pub/media/wysiwyg/key3/img/UX200SEARGB/pic3.png)
Synchronizuj z oprogramowaniem RGB płyt głównych
Zaprojektowane do synchronizacji z płytami ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync i ASRock Polychrome. Obsługuje płyty główne z adresowalnym złączem RGB 5V, umożliwiając sterowanie oświetleniem bezpośrednio z wyżej wymienionego oprogramowania bez instalowania dodatkowego aplikacji lub kontrolerów oświetlenia. Aby uzyskać więcej informacji, odwiedź oficjalne strony internetowe ASUS, GIGABYTE, MSI i ASRock.
Aura Addressable Header
ASUSDigital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
Kategoria | Uwaga |
Obudowy, wentylatoy ARGB, AIO ARGB |
|
Pamięci RGB, bloki wodne VGA, Distro Plate |
|
P/N | CL-P105-AL12SW-A |
---|---|
ZGODNOŚĆ | Intel LGA 1700/1200/1156/1155/1151/1150 AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 (CPU Socket) |
Wymiary | 122 x 61 x 156.2 mm ( L x W x H) |
Heatsink Material | Aluminum FinsCopper Heatpipes |
Heatpipe | Φ6mm x 4 pcs |
Rozmiar wentylatora | 120 x 120 x 25 mm ( L x W x H) |
Fan quantity | 1pcs |
Prękość obrotowa wentylatora | PWM 800~1800 RPM |
Rated Voltage | 12V |
Start Voltage | 6.0 V |
Prąd znamionowy | 0.3 A |
Zasilanie wejściowe | 4.32W |
Air Flow | 62.72 CFM |
Static Pressure | 1.47 mm-H2O |
Acoustical Noise | 25.0 dBA |
Life time/Fan Life time | 30,000 hours |
pin connect | 5V RGB header 2510 - 4Pin |
Cooling Power | 170 W |
