TR2 Series TR2-0450P-G – 450W 80 PLUS® Gold Certified APFC PSU

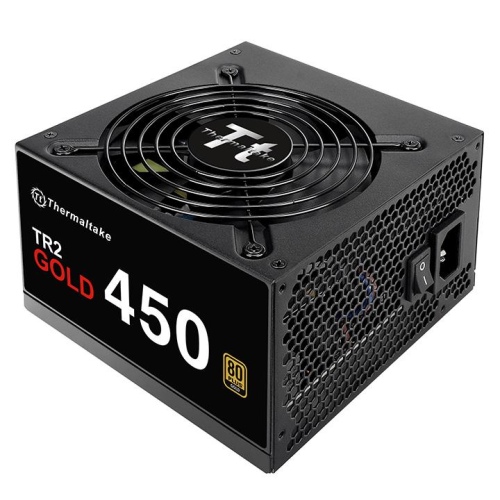

Thermaltake TR2 450W Gold

Incorporating various high-quality components, the new TR2 Gold – models are rated from 450W to 700W – saves energy through its high efficiency of up to 90% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet Fan

TR2 Gold Series adopts 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

Multiple Connectors

The cables used for TR2 Gold are all sleeved. TR2 450W Gold connector’s specification as below:

80 PLUS Gold Certified and Kaby Lake-Ready

TR2 Gold Series saves energy through its high energy efficiency of up to 90% and is 80 PLUS® Gold certified. Additionally, TR2 S Gold Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

High Quality Capacitors

High quality capacitors enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Massive and Dedicated +12V Output

Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:


Input Voltage: 100V-240V
Input Current: 8A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A




Max Output Power





Continuous Power


Więcej informacji
watts 450W
Wentylator RGB Nie
Standard ATX
Model TR2-450AH2NSG
Rodzaj Intel ATX 12V 2.3
Max. Output Capacity 450W
Kolor Black
Dimension ( W / H / D ) 86mm x 150mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) within full load under 230Vac/ 50Hz input.
Input Current 8A max
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0℃ to +40℃
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 ℃ to +70 ℃
Storage Humidity 20% to 95%, non-condensing
SYSTEM CHŁODZENIA 120mm Fan: 1500 R.P.M. ± 10%
Efficiency 87-92% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval CE/UL/CUL/FCC/TUV/GOST.
PCI-E 6+2pin PCI-E 6+2pin x 1
