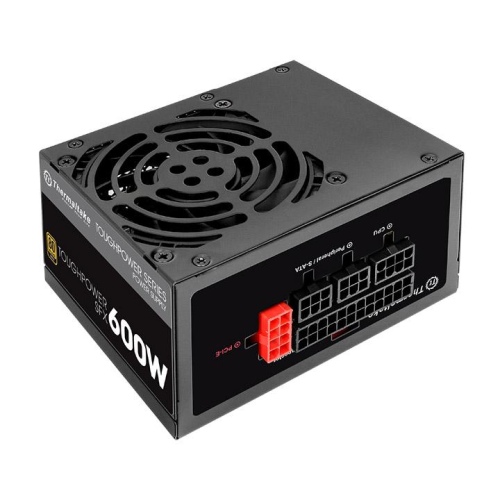

Thermaltake Toughpower SFX 600W Gold
Incorporating various high-quality components, Toughpower SFX 600W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Additionally, an embedded temperature controlled Zero RPM Smart Fan System is optimized to deliver excellent airflow at an exceptionally low noise level. Fully modular flat cable design is convenient for cable management. Moreover, the powerful single +12V rail enables non-stop usage with stable and reliable performance.
80 PLUS Gold Certified and Kaby Lake Ready
Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. Additionally, Toughpower SFX 600W Gold has been optimized to work with Intel’s new 6th-generation Kaby Lake processors to achieve maximum energy savings.
Universal Compact Design for All Mainstream PC Cases – SFX to ATX PSU Adapter Bracket
Toughpower SFX 600W Gold is designed with two-way application by the compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard. Toughpowr SFX Series has included a matte black SFX to ATX adapter bracket which helps users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis. In addition, with the compact design, Toughpower SFX Series allows better airflow inside the chassis as well as leaves more space for users to utilize.
Zero RPM Smart Fan
To maximally reduce undesired noise, Toughpower SFX 600W Gold is designed with an 80mm temperature controlled Zero RPM Smart Fan. The fan will not operate when the PSU is at low working loads.
Fully Modular Low-Profile Flat Cables
Fully modular Toughpower SFX 600W Gold offers cables selection for users while powering the system at an advantageous voltage. Low-profile flat black cable can make cable management easier, reduce clutter and increase airflow inside the chassis.
100% High Quality Japanese Capacitors
Toughpower SFX 600W Gold features 100% high quality Japanese brand capacitors, which greatly improves the durability and offers the highest stability and reliability.
Massive and Dedicated +12V Output
Toughpower SFX 600W Gold is equipped with a powerful single +12V rail, please see the output specification below:
| AC INPUT |
Input Voltage: 100V-240V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A |
15A |
50A |
0.3A |
2.5A |
| Max Output Power |
90W |
600W |
3.6W |
12.5W |
|
| Continuous Power |
600W |
||||
| P/N | PS-STP-0600FPCGXX-G |
|---|---|
| watts | 600W |
| Wentylator RGB | Nie |
| Standard | SFX |
| Model | STP-600AH1FEG |
| Rodzaj | Intel SFX 12V 3.3 and ATX 12V 2.4 |
| Max. Output Capacity | 600W |
| Peak Output Capacity | 720W |
| Kolor | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 75% of full load |
| Input Current | 4.5A – 9A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V - 240V |
| Operating Temperature | 0 ℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -20 ℃ to +90 ℃ |
| Storage Humidity | 5% to 95%, non-condensing |
| SYSTEM CHŁODZENIA | 8cm fan |
| Efficiency | MEET 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/FCC/UL/Bauart Mark+CB/EAC |
| PCI-E 6+2pin | 2 |
User Manual
- Nazwa pliku
- Opis
- Rozmiar
- Version
- Release Date
-
Manual
- Multi-language
- 1.7 MB
- 2016-05-25
