Toughpower iRGB PLUS 850W Platinum - TT Premium Edition
Toughpower i Series TPI-0850F2FDP– 850W 80 PLUS® Platinum Certified Full-Modular APFC PSU

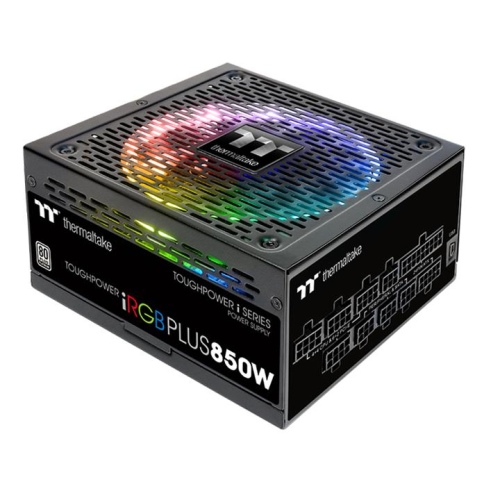

Thermaltake Toughpower iRGB PLUS 850W Platinum - TT Premium Edition
Thermaltake Toughpower iRGB PLUS Platinum Series features a patented 16.8 million colors RGB fan, 12 addressable single LEDs and high-tech components. With the support for three Thermaltake’s intelligent platforms – DPS G PC APP, DPS G Smart Power Management (SPM) Cloud and DPS G Mobile APP– Toughpower iRGB PLUS Platinum Series becomes the world’s first voice controllable digital power supply that enables users to access power supply’s current status, CPU/VGA/RAM key parameters, control over RGB fan lighting mode and fan speed , along with the real-time alerts covering major PSU abnormalities, and eventually save energy and reduce CO2 emission.
* All images are for reference only; actual specification and lighting effects are based on the real product.
What is Smart Power Management (SPM)?
What is Smart Power Management (SPM)? Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
Warning Alert
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Schedule Shutdown
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.
※The photo is for reference.
Shimmering Your Build From Color to Color
The Toughpower iRGB PLUS Platinum Series is the best idea for users to go with when they are looking for an RGB PSU
with remarkable functionality and aesthetics in all cases.
Patented 16.8 Million Colors Riing PLUS 14 RGB Fan
The Toughpower iRGB PLUS Platinum Series is installed with a patented circular
16.8 million multi-colored 140mm fan. Users can freely adjust fan speed and customize the lighting effects with
DPS G PC App.
Taiwan Patent: 105218791
US Patent Applied
China Patent Applied
12 Addressable RGB LEDs at Your Control
Featuring 12 addressable single LEDs, great light coverage, uniform color and brightness, users are allowed to easily configure the RGB lighting and freely adjust fan speed with Thermaltake DPS G PC App.
Compact Design for Easy Installation
With its short depth of 160mm, Toughpower iRGB PLUS 1050W Platinum gives high compatibility to allow users for more room for cable routing, cooling and more.
New Platform for Better Ripple Noise Performance and Steady Voltage Output
All new circuit design with PFC & LLC digital controllers efficiently reduces ripple noise and gives steady voltage output.
< 30 mV Low Ripple Noise
All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
Extremely Strict Voltage Regulation < ±2%
The voltage regulation of the PSU is set to no more than ±2% for major rails to meet the highest performance. The strict voltage regulation of the Toughpower iRGB Platinum Series is better than Intel’s standard ±5% for major rails and ±10% for -12V.
100% High Quality Japanese Capacitors
The Toughpower iRGB PLUS Platinum Series features 100% high quality Japanese
brand capacitors, which greatly improves the durability and offers the highest stability and reliability.
Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Flat cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Core Component: MCU
Toughpower iRGB PLUS Platinum Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
Digital Control Board
Digital power supplies sport high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.
Massive and Dedicated +12V Output
Toughpower iRGB PLUS 850W Platinum is equipped with a powerful single +12V
rail, please see the output specification below:
80 PLUS Platinum-Certified and Kaby lake-Ready
Toughpower iRGB PLUS Platinum Series Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, this series has been optimized to work with Intel’s new, seventh-generation Kaby lake processors to achieve maximum energy savings.
TT Power VR Ready
Toughpower iRGB PLUS Platinum Series offers stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.
Nowe oprogramowanie TT RGB PLUS
Wersja 2.0 to nowa wersja opatentowanego oprogramowania Thermaltake TT RGB PLUS, zapewniająca więcej efektów świetlnych i funkcji monitorowania komputera.
Wersja 1.0 to opatentowane oprogramowanie Thermaltake do synchronizacji produktów TT RGB PLUS z adresowalnymi diodami LED.
Uwaga: TT RGB PLUS 2.0 i TT RGB PLUS 1.0 uzupełniają się nawzajem; użytkownicy mogą zainstalować tylko jedną wersję TT RGB PLUS.
2.0 POBIERZ TERAZ
2.0 INSTRUKCJA OBSŁUGI
1.0 POBIERZ TERAZ
DOWIEDZ SIĘ WIĘCEJ
Synchronizacja z Razer Chroma Lighting
Wszystkie produkty Thermaltake TT RGB PLUS można połączyć z ekosystemem Razer Chroma, Razer Synapse 3. Użytkownicy mogą doświadczyć zsynchronizowanych efektów podświetlenia RGB w systemie chłodzenia cieczą TT RGB PLUS i sprzęcie do gier Razer!
Współpracuje z Amazon Alexa
Wszystkie produkty Thermaltake TT RGB PLUS obsługują usługę Amazon Alexa Voice Service, umożliwiając wydawanie poleceń głosowych urządzeniom obsługującym Alexa.
Sterowanie głosowe TT AI
Daj pełną kontrolę nad produktami TT RGB PLUS za pomocą głosu. „Synchronizuj WSZYSTKO, powiedz „Hello TT”.
| P/N | PS-TPI-0850F2FDPE-1 |
|---|---|
| watts | 850W |
| Wentylator RGB | Tak |
| Standard | ATX |
| Model | TPI-850DH3FCP |
| Rodzaj | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 850W |
| Peak Output Capacity | 1020W |
| Kolor | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 12A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| SYSTEM CHŁODZENIA | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Platinum at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV/FCC/CCC/EAC /S-Mark |
| PCI-E 6+2pin | 6 |
User Manual
- Nazwa pliku
- Opis
- Rozmiar
- Version
- Release Date
-
Manual
- Multi-language
- 2.1 MB
- 2017-08-21
-
Manual
- Multi-language
- 2.1 MB
- 2017-08-21
-
TT DPS G App Voice Control Command Instructions
- Multi-language
- 541.3 KB
- 2018-01-31
-
SPM Alexa Skill Settings
- En
- 904.5 KB
- 2018-08-22
-
SPM Alexa Voice command
- En
- 187.5 KB
- 2018-08-22
-
DPS G PC APP PSU Software Manual
- Manual
- 717.9 KB
- 2019-06-25
-
DPS G PC APP PSU 軟體使用說明書
- 說明書
- 569 KB
- 2019-06-25
Drivers & Software
- Nazwa pliku
- Opis
- Rozmiar
- Version
- Release Date
-
TT RGB PLUS Software
-
1.Optimized RGB SYNC. (MSI motherboard)
2.Update HAL.
3.Minor bug fixes and system performance. - V 1.4.3
- 2021-08-03
-
TT DPS G APP
- 1.Made minor bug fixes and system performance improvements.
- V3.3.3
- 2024-03-19
