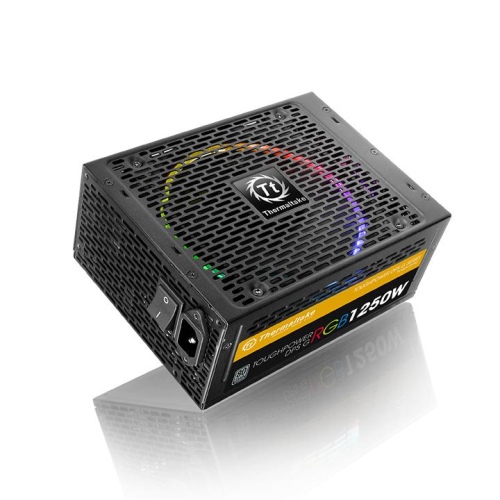

Thermaltake Toughpower DPS G RGB 1250W Titanium
The Thermaltake Toughpower DPS G RGB 1250W Titanium is the
world’s first PSU
pre-installed with a patented 256 colors RGB fan that incorporate various high-tech
components, leading
technology and Eco-friendly commendations. Featuring 80 PLUS Titanium certification with
individually sleeved
cable and flat cable, Toughpower DPS G RGB Titanium Series adopts the highest quality
components and fully
modular design that always accommodate any mainstream build under any circumstance.
The combination of Toughpower DPS G RGB Titanium and three intelligent platforms – DPS G PC
APP 3.0, DPS G
Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just
monitor smart power
supply units, but also save the energy, reduce CO2 emission, and eventually protect the
Earth.
What is Smart Power Management (SPM)?
What is Smart Power Management (SPM)? Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
Warning Alert
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Schedule Shutdown
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.
※The photo is for reference.
Patented 256 color RGB Fan
The first RGB PSU series introduced by Thermaltake install with a patented circular 256 multi-colored 140mm fan. Users can freely adjust fan speed as well as fan colors digitally through DPS G PC App. The app features four lighting modes: Single Color, Random Color, RGB Cycle, and Blink. The color and brightness uniformity of the multicolored LED ring is visible from all directions and adds style to the chassis.
Power Supply Fan Face-Up Placement for Better Cooling
By face-up placement, users can adjust the PSU with patented circular 256 multi-colored RGB fan for the best viewing presentation while ensuring outstanding cooling performance. As the thermal image testing shown, the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up.
Concentrated Compression Fan Blade
The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.
100% High Quality Japanese Capacitors
The Toughpower DPS G RGB 1250W Titanium features 100% high
quality Japanese
brand capacitors, which greatly improves the durability and offers the highest stability and
reliability.
Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Individually sleeved cable and flat cable can make cable management easier, reduce clutter and increase airflow inside the chassis.
Core Component: MCU
Toughpower DPS G RGB 1250W Titanium Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
Digital Control Board
Toughpower DPS G RGB 1250W Gold is equipped with a powerful
single +12V rail,
please see the output specification below:
Massive and Dedicated +12V Output
Toughpower DPS G RGB 1250W Gold is equipped with a powerful single +12V rail, please see the output specification below:
| AC INPUT |
Input Voltage: 115V - 240V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A |
20A |
104A |
0.3A |
3A |
| Max Output Power |
100W |
1248W |
3.6W |
15W |
|
| Continuous Power |
1250W |
||||
80 PLUS Titanium-Certified and Kaby Lake-Ready
Toughpower DPS G RGB 1250W Titanium Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Toughpower DPS G RGB 1250W Titanium has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
TT Power VR Ready
Toughpower DPS G RGB Series power supplies offer stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.
Nowe oprogramowanie TT RGB PLUS
Wersja 2.0 to nowa wersja opatentowanego oprogramowania Thermaltake TT RGB PLUS, zapewniająca więcej efektów świetlnych i funkcji monitorowania komputera.
Wersja 1.0 to opatentowane oprogramowanie Thermaltake do synchronizacji produktów TT RGB PLUS z adresowalnymi diodami LED.
Uwaga: TT RGB PLUS 2.0 i TT RGB PLUS 1.0 uzupełniają się nawzajem; użytkownicy mogą zainstalować tylko jedną wersję TT RGB PLUS.
2.0 POBIERZ TERAZ
2.0 INSTRUKCJA OBSŁUGI
1.0 POBIERZ TERAZ
DOWIEDZ SIĘ WIĘCEJ
| P/N | PS-TPG-1250DPCTEU-T |
|---|---|
| watts | 1250W |
| Wentylator RGB | Nie |
| Standard | ATX |
| Model | TPG-1250DH3FCT |
| Rodzaj | Intel ATX 12V 2.31 & SSI EPS 12V 2.92 |
| Max. Output Capacity | 1250W |
| Peak Output Capacity | 1500W |
| Kolor | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 200mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load (115Vac/ 230Vac input) |
| Input Current | 15A |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V - 240V |
| Operating Temperature | 0 ℃ to +50℃ |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20 ℃ to +70 ℃ |
| Storage Humidity | 5% to 95%, non-condensing |
| SYSTEM CHŁODZENIA | 14cm RGB Fan |
| Efficiency | MEET 80 Plus Titanium at 115Vac input |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/FCC/UL/ TUV/EAC |
| PCI-E 6+2pin | PCI-E 6+2pin/ 8pin X 8 |
