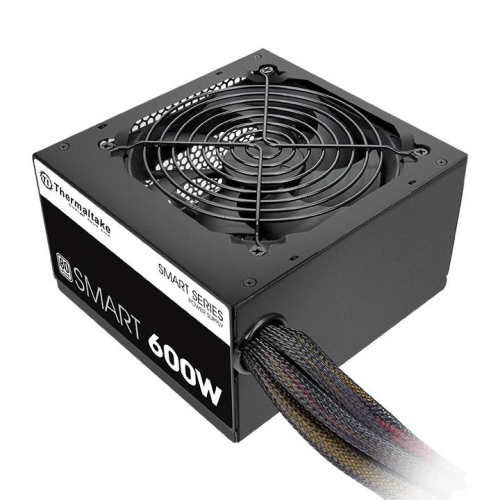

Thermaltake Smart 600W
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/main_600.jpg)
120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/pic1.jpg)
Multiple Connectors
Smart 600W connector’s specification as below:
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/pic3_600.jpg)
80 PLUS Standard Certified and Haswell Ready
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/pic4_4500.jpg)
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/pic5.jpg)
Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
AC INPUT | Input Voltage: 100V-240V |
||||
DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
Max Output Current | 22A | 17A |
42A |
0.5A |
2.5A |
Max Output Power | 105W |
504W | 6.0W |
12.5W |
|
Continuous Power | 600W |
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/psu/Smart500W/pic2_500.jpg)
P/N | PS-SPD-0600NPCW-W |
---|---|
watts | 600W |
Wentylator RGB | Nie |
Standard | ATX |
Rodzaj | Intel ATX 12V 2.3 |
Kolor | Black |
Operating Temperature | 5℃ to +40℃ |
SYSTEM CHŁODZENIA | 120mm Fan: 1800 R.P.M. ± 10% |
Efficiency | 82-86% efficiency @ 20-100% load |
MTBF | 100,000 hrs minimum |
