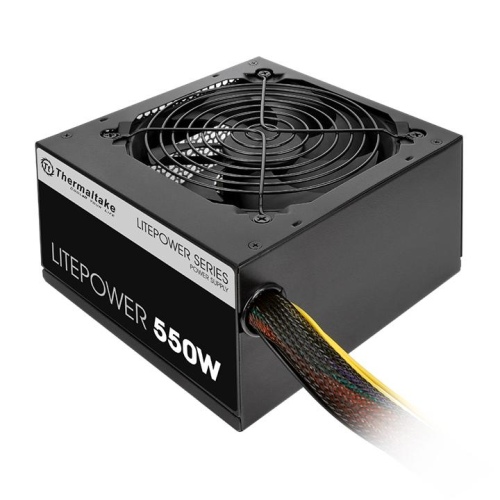

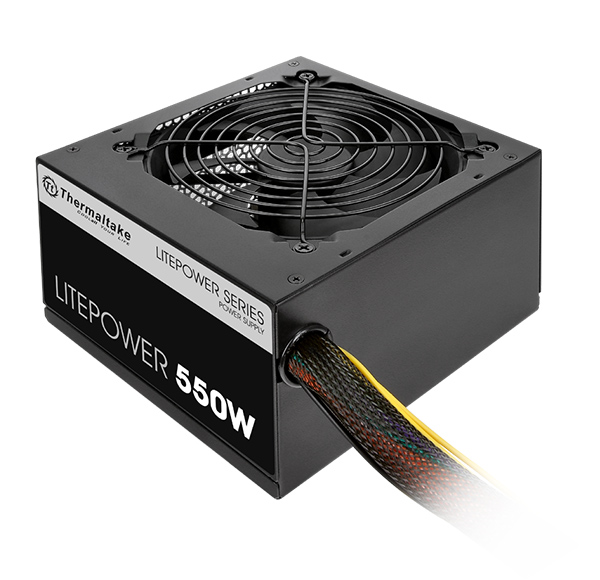

Thermaltake Litepower 550W
Incorporating various high-quality components, the new Litepower Series – rated from 350W to 650W – saves energy up to 80% efficiency. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. In addition, the single +12V rail design enables non-stop usage with stable and reliable performance.

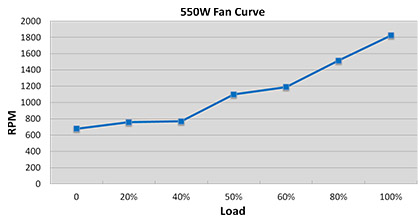

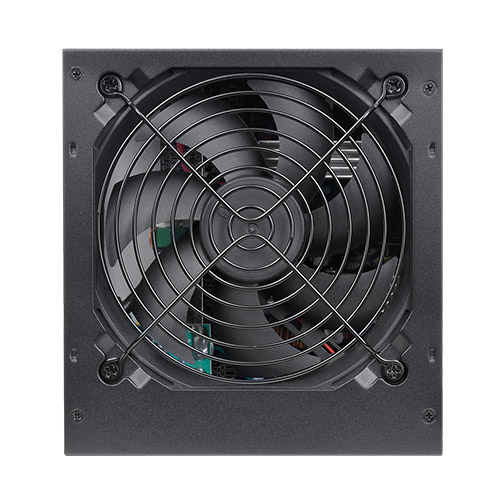

Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Cables with High Flexibility
Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

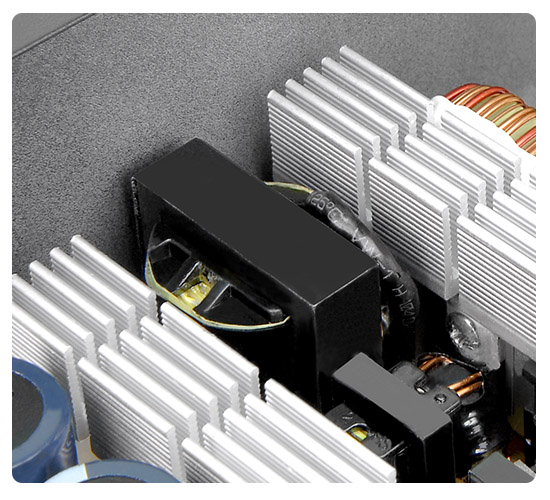

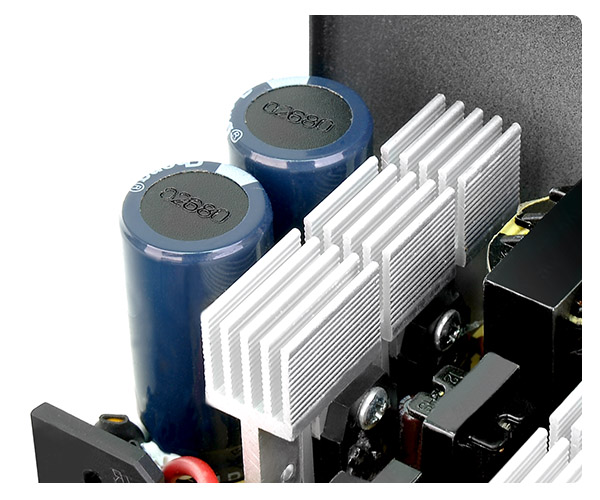

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage
Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT | Input Voltage: 110V/220V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 21A | 16A |
38A |
0.5A |
2.5A |
| Max Output Power | 105W |
456W | 6W |
12.5W |
|
| Total Power | 550W |
||||
| P/N | LTP-0550C-F |
|---|---|
| watts | 550W |
| Wentylator RGB | Nie |
| Standard | ATX |
| Model | LTP-550NL2NK |
| Rodzaj | ATX 12V 2.3 |
| Max. Output Capacity | 550W |
| Kolor | Black |
| Dimension ( W / H / D ) | 150mm x 86mm x 140mm |
| PFC (Power Factor Correction) | W/O PFC |
| Power Good Signal | 100-500 msec. |
| Hold Up Time | >16msec |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 110V / 220V |
| Operating Temperature | +5℃ to +35℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40℃ to +55℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| SYSTEM CHŁODZENIA | 120mm Fan: 1800±10% RPM |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE, TUV SUD, CB, FCC, UL, S-Mark, EAC, BSMI and RCM certified. |
| PCI-E 6+2pin | 6+2pin PCI-E Connector x 2 |
