Core X9 Snow Edition Core X9 Snow Edition Core X9 Snow Edition Core X9 Snow Edition Core X9 Snow Edition Core X9 Snow Edition
Core X9 Snow Edition

Core X9 Snow Edition

Brak w magazynie
P/N
CA-1D8-00F6WN-00
179,99 € (included VAT)

A cube case that supports up to E-ATX, offering an endless stackable and expandable cooling solution while allowing externally-modular upgrades for enthusiasts to create dual systems.

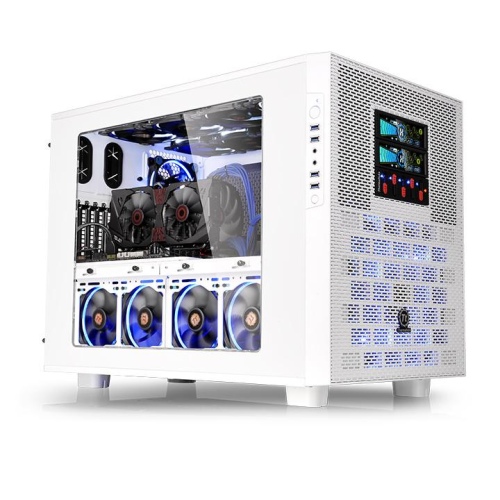

Thermaltake Core X9 Snow Edition

The Core X9 Snow is an E-ATX cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems, utilize as a file server as well as accommodate dual systems. Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design. The Core X9 Snow delivers outstanding cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components, further enhancing the reputation that the air-cooling units of this series has become renowned for. It is guaranteed to be an immensely powerful system!


Tt LCS Certified Quick Look


Thermaltake Core X Series Commercial Ads

Stackable for Enthusiasts

With its endless stacking design, the Core X9 Snow Edition is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side.

Remarkable Expansion

Designed for high-end gaming system compatibility, the Core X9 Snow Edition’s modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA of up to 590mm in length, and a tower CPU cooler as high as 250mm. Even with a high-wattage PSU stretching to 200mm in length, it still leaves plenty of space for cable management. Moreover, two 480mm radiators can be installed on top of the chassis, delivering superior cooling performance.

Excellent Ventilation

The Core X9 Snow Edition’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. A large 200mm fan is pre-installed on the front side and a rear 120mm fan reassures and guarantees the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel, while there is room for 120mm and 140mm fans on the side panel.

Chambers Concept

Optimized for space management, the Core X9 Snow Edition is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.

Fully Modular Design

A “3 +9” drive bay concept design for accessory and storage devices makes setting up the best storage solution on the market super easy and flexible. In addition, a customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their particular needs.

Interchangeable Window and I/O Panel

Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design. Side I/O ports include four USB 3.0.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Core X9 Snow Edition Radiator Supporting List

Radiator Compatibility List
  120
mm
140
mm
180
mm
240
mm
280
mm
360mm (120mm based) 360mm (180mm based) 420
mm
480
mm
540
mm
Front * * * * * * * * * *
Top * * * * * * * * *
Rear * *
Bottom * *   * * *   * *
Side (L/R) * *   * * *   * *
Water 3.0 Compatibility List
  Ultimate Extreme/
Extreme S
Pro Performer/
Performer C
Front
Top * * * *
Rear   * * *
Bottom
Side (L/R) * * * *

Core X9 Snow Edition Fan Supporting List

Fan Compatibility List
  120mm 140mm 200mm
Front 3 2 2
Top 8 6 2
Rear 2 2 -
Bottom 6 - -
Side (L/R) 4 3 -
Thermaltake Compatible Fan
  120mm 140mm 200mm
Pure Fan Series * * *
Luna Fan Series * * *
Odin Fan Series *

Core X Series Comparison Chart

Więcej informacji
P/N CA-1D8-00F6WN-00
Saria Core
Model Core X9 Snow Edition
RODZAJ OBUDOWY E-ATX Cube Case
Wymiar (Wys. x Szer. x Gł.) 502 x 380 x 640 mm
(19.8 x 15 x 25.2 inch)
WAGA NETTO 17 kg / 37.5 lb
PANEL BOCZNY Transparent Window
Kolor Exterior & Interior : White
MATERIAŁ SPCC
SYSTEM CHŁODZENIA Front (intake) :
200 x 200 x 30 mm fan (800rpm, 13dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Zatoki dyskowe
-Dostępne
-Ukryte
3 x 5.25’’
-Accessible : 6 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden : 1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
GNIAZDA ROZSZERZEŃ 8
PŁYTY GŁÓWNE 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube<br />
PORTY WE/WY USB 3.0 x 4, HD Audio x 1
ZASILACZ Standard PS2 PSU (optional)
WSPARCIE WENTYLATORÓW Front:
3 x 120mm
2 x 140mm
2 x 200mm
Top:
8 x 120mm
6 x 140mm
2 x 200mm
Rear:
2 x 120mm or 2 x 140mm
Bottom:
3 x 120mm
Left / Right Side:
4 x 120mm
3 x 140mm
WIELKOŚĆ CHŁODNICY Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
PRZEŚWIT CPU cooler height limitation:
250mm
VGA length limitation:
400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation:
220mm (With Bottom Fan)
