Core V71 Power Cover Edition Core V71 Power Cover Edition Core V71 Power Cover Edition Core V71 Power Cover Edition Core V71 Power Cover Edition Core V71 Power Cover Edition
Core V71 Power Cover Edition

Core V71 Power Cover Edition

Brak w magazynie
P/N
CA-1B6-00F1WN-03
169,99 € (included VAT)
The new Core V71 Power Cover Edition allows users to enjoy the freedom of gaining the maximum interior space for advance cooling performance or liquid system build.

Thermaltake Core V71 Power Cover Edition

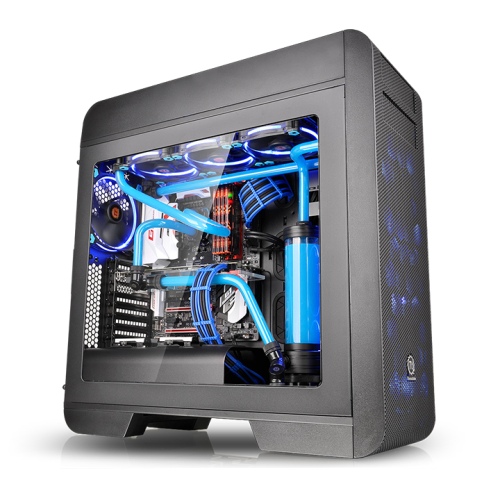

Thermaltake Core V71 full-tower chassis with power cover design, retaining the curved metal mesh look and delivering an outstanding cooling performance with the compatibility for the extensive DIY/AIO LCS. Core V71 Power Cover Edition is an enthusiast’s grade full-tower chassis that creates unprecedented space for high-end hardware and liquid cooling expansion, supporting the latest E-ATX, ATX, Micro ATX motherboards, and all high-end GPU cards.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Enthusiast Design

Designed for gamers, the perforated top panel allows easy heat dissipation and rapid air intake for maximum ventilation. The heightened case-stands at the bottom help to enhance airflow and overall stability during operation. Featuring a transparent side window to offer a direct view of the inner system.

Power Cover Design

Power cover design is one of the Core V71 Power Cover Edition unique features. The entire bottom area can be used to reorganize unused cables, which makes for a tidy-looking system. Furthermore, the PSU cover can hold two additional 2.5” HDD drive bays.

Fully Modular Concept

A highly customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their needs and remove the 5.25” & 3.5” drive bays to gain maximum interior space for advance cooling performance or liquid system build.

Advanced Ventilation

Core V71 Power Cover Edition delivers an outstanding cooling performance, consisting of DIY/AIO liquid cooling systems and air cooling units. Two large 200mm intake fans are hidden behind the front dust filter and the third one is at the top, quietly pushing vast amounts of air over the hard drives and GPUs. The air is then extracted by the fourth 140mm fan at the rear. Additionally, with the aid of the cable management design guaranteed to take the cooling performance to the next level.

High-End Complete Solution

Core V71 Power Cover Edition enables users to build a complete high-end system, whilst supporting up to either 420mm radiator liquid cooling, or 200mm case fans, with a long graphic card at the same time, and simultaneously protecting the user’s hardware as well as increasing the CPU’s overclocking potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire case.

Core V71 Power Cover Edition Radiator Supporting List

Radiator Compatibility
  120
mm
240
mm
360
mm
140
mm
280
mm
420
mm
Front * * * * * *
Top * * * * * *
Rear *
Bottom * *
Water 3.0 Compatibility List
  Ultimate Extreme/ Extreme S Pro Performer/ Performer C
Front
Top * * * *
Rear     * *
Bottom

Core V71 Power Cover Edition Fan Supporting List

Fan Compatibility List
  120mm 140mm 200mm
Front 3 2 2
Top 3 2 2
Rear 1 1 -
Bottom 2 - -
Side - - -
Thermaltake Compatible Fan
  120mm 140mm 200mm
Pure Fan Series * * *
Luna Fan Series * * *
Riing Fan Series * *

Więcej informacji
P/N CA-1B6-00F1WN-03
Saria Core
RODZAJ OBUDOWY Full Tower
Wymiar (Wys. x Szer. x Gł.) 583 x 230 x 560 mm
(23 x 9.1 x 22 inch)
WAGA NETTO 12.9 kg / 28.4 lb
PANEL BOCZNY Transparent Window
Kolor Exterior & Interior : Black
MATERIAŁ SPCC
SYSTEM CHŁODZENIA Front (intake) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
Zatoki dyskowe
-Dostępne
-Ukryte
-Accessible
2 x 5.25’’

-Hidden
8 x 3.5’’ or 2.5’’ (HDD Cage)
2 x 2.5’’ (With Power Cover)
GNIAZDA ROZSZERZEŃ 8
PŁYTY GŁÓWNE 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (Extend ATX)
PORTY WE/WY USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1,
Fan Speed Control, Fan LED On/Off
ZASILACZ Standard PS2 PSU (optional)
WSPARCIE WENTYLATORÓW Front:3 x 120mm , 2 x 140mm , 2 x 200mm
Top:3 x 120mm , 2 x 140mm , 2 x 200mm
Rear:1 x 120mm , 1 x 140mm
Bottom:2 x 120mm
WIELKOŚĆ CHŁODNICY Front:1 x 360mm , 1 x 420mm
Top:1 x 360mm , 1 x 420mm
Rear:1 x 120mm
Bottom:1 x 240mm
PRZEŚWIT CPU cooler height limitation:
185mm
VGA length limitation:
310mm(with HDD rack)
480mm(without HDD rack)
PSU length limitation:
220mm (With Bottom Fan)

User Manual

  • Nazwa pliku
  • Opis
  • Rozmiar
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 6.3 MB
  • 2016-01-11
